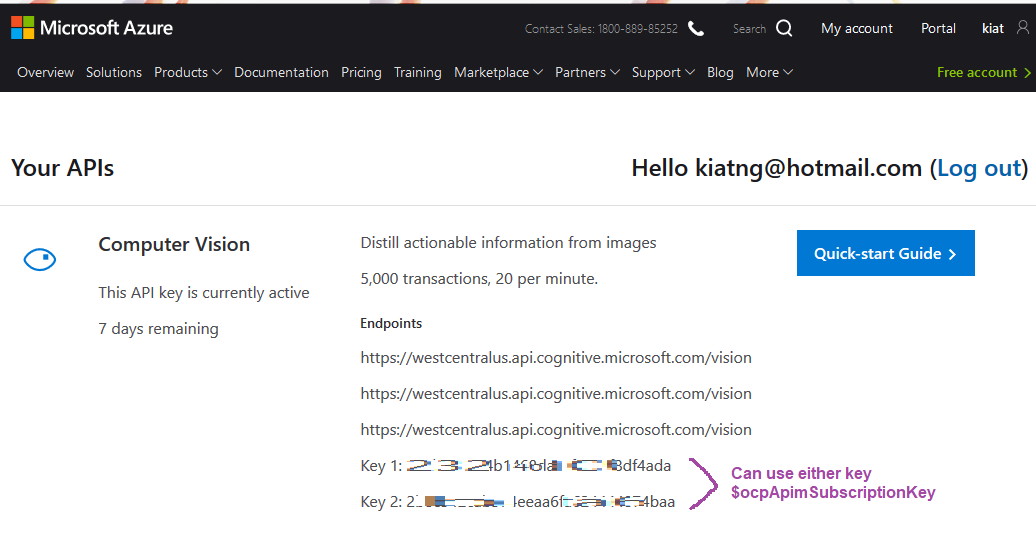

Get the Microsoft Azure Computer Vision API Key here Show archive.org snapshot .
There is a sample PHP code in github Show archive.org snapshot that uses Pear HTTP_Request2 package.
In this stackoverflow Show archive.org snapshot , we can use curl instead.
public function msvisionAction()
{
$t2 = microtime(true);
$ocpApimSubscriptionKey = '232xxxxxxxxxxx4ada';
$uriBase = 'https://westcentralus.api.cognitive.microsoft.com/vision/v2.1/ocr';
$url = $uriBase.'?'.'language=unk&detectOrientation=true';
$headers = array(
'Content-Type: application/json',
//'Content-Type: application/octet-stream',
'Ocp-Apim-Subscription-Key: '.$ocpApimSubscriptionKey
);
$body = json_encode(array('url' => 'http://domain.com.my/media/m1.jpg'));
$ch = curl_init($url);
curl_setopt($ch, CURLOPT_FRESH_CONNECT, true); // don't cache curl request
curl_setopt($ch, CURLOPT_POST, true);
curl_setopt($ch, CURLOPT_POSTFIELDS, $body);
curl_setopt($ch, CURLOPT_RETURNTRANSFER, true); // return the transfer as a string of the return value
curl_setopt($ch, CURLOPT_HTTPHEADER, $headers);
curl_setopt($ch, CURLOPT_SSL_VERIFYHOST, 0); // disable SSL checks may not be needed
curl_setopt($ch, CURLOPT_SSL_VERIFYPEER, 0);
$response = curl_exec($ch);
$chError = curl_error($ch);
curl_close($ch);
$dt = microtime(true) - $t2;
Mage::helper('clog')->_echo([json_decode($response, true), $chError], "Done in $dt secs");
}
See API Doc Show archive.org snapshot .
Output:
Done in 5.5461490154266 secs
array(2) {
[0] => array(4) {
["language"] => string(2) "en"
["textAngle"] => float(-0.090757121103704)
["orientation"] => string(2) "Up"
["regions"] => array(4) {
[0] => array(2) {
["boundingBox"] => string(13) "119,293,15,10"
["lines"] => array(1) {
[0] => array(2) {
["boundingBox"] => string(13) "119,293,15,10"
["words"] => array(1) {
[0] => array(2) {
["boundingBox"] => string(13) "119,293,15,10"
["text"] => string(4) "•z"
}
}
}
}
}
[1] => array(2) {
["boundingBox"] => string(14) "63,729,439,334"
["lines"] => array(15) {
[0] => array(2) {
["boundingBox"] => string(13) "66,729,258,17"
["words"] => array(2) {
[0] => array(2) {
["boundingBox"] => string(13) "66,730,143,16"
["text"] => string(13) "JAMHUURIYADDA"
}
[1] => array(2) {
["boundingBox"] => string(14) "214,729,110,13"
["text"] => string(10) "SOOMAALIYA"
}
}
}
[1] => array(2) {
["boundingBox"] => string(13) "63,758,201,11"
["words"] => array(2) {
[0] => array(2) {
["boundingBox"] => string(12) "63,758,73,11"
["text"] => string(9) "BAASABOOR"
}
[1] => array(2) {
["boundingBox"] => string(13) "206,758,58,11"
["text"] => string(8) "PASSPORT"
}
}
}
[2] => array(2) {
["boundingBox"] => string(14) "270,768,153,11"
["words"] => array(5) {
[0] => array(2) {
["boundingBox"] => string(11) "270,771,3,8"
["text"] => string(1) "j"
}
[1] => array(2) {
["boundingBox"] => string(11) "276,769,6,9"
["text"] => string(1) "N"
}
[2] => array(2) {
["boundingBox"] => string(13) "312,768,18,11"
["text"] => string(3) "OJI"
}
[3] => array(2) {
["boundingBox"] => string(13) "332,769,28,10"
["text"] => string(6) ",rrype"
}
[4] => array(2) {
["boundingBox"] => string(12) "383,769,40,8"
["text"] => string(7) "AsbaoZa"
}
}
}
[3] => array(2) {
["boundingBox"] => string(13) "400,784,37,13"
["words"] => array(1) {
[0] => array(2) {
["boundingBox"] => string(13) "400,784,37,13"
["text"] => string(3) "SOM"
}
}
}
[4] => array(2) {
["boundingBox"] => string(14) "287,821,215,14"
["words"] => array(3) {
[0] => array(2) {
["boundingBox"] => string(13) "287,822,80,13"
["text"] => string(7) "NASTEHO"
}
[1] => array(2) {
["boundingBox"] => string(13) "373,821,67,14"
["text"] => string(6) "HASSAN"
}
[2] => array(2) {
["boundingBox"] => string(13) "446,821,56,14"
["text"] => string(5) "ROBLE"
}
}
}
[5] => array(2) {
["boundingBox"] => string(14) "288,859,205,13"
["words"] => array(3) {
[0] => array(2) {
["boundingBox"] => string(13) "288,859,60,13"
["text"] => string(5) "HALWO"
}
[1] => array(2) {
["boundingBox"] => string(13) "353,859,75,13"
["text"] => string(7) "ABDUL"
}
[2] => array(2) {
["boundingBox"] => string(13) "434,859,59,13"
["text"] => string(5) "GOBE"
}
}
}
[6] => array(2) {
["boundingBox"] => string(13) "356,881,56,11"
["words"] => array(1) {
[0] => array(2) {
["boundingBox"] => string(13) "356,881,56,11"
["text"] => string(12) "'Nationality"
}
}
}
[7] => array(2) {
["boundingBox"] => string(13) "288,897,62,13"
["words"] => array(1) {
[0] => array(2) {
["boundingBox"] => string(13) "288,897,62,13"
["text"] => string(6) "SOMALI"
}
}
}
[8] => array(2) {
["boundingBox"] => string(12) "466,918,34,8"
["words"] => array(2) {
[0] => array(2) {
["boundingBox"] => string(11) "466,918,9,8"
["text"] => string(2) "oi"
}
[1] => array(2) {
["boundingBox"] => string(12) "477,918,23,8"
["text"] => string(5) "Birth"
}
}
}
[9] => array(2) {
["boundingBox"] => string(13) "288,934,96,17"
["words"] => array(3) {
[0] => array(2) {
["boundingBox"] => string(13) "288,934,18,13"
["text"] => string(2) "08"
}
[1] => array(2) {
["boundingBox"] => string(13) "312,934,30,17"
["text"] => string(3) "May"
}
[2] => array(2) {
["boundingBox"] => string(13) "349,934,35,13"
["text"] => string(4) "1996"
}
}
}
[10] => array(2) {
["boundingBox"] => string(13) "278,956,63,10"
["words"] => array(2) {
[0] => array(2) {
["boundingBox"] => string(12) "278,956,17,9"
["text"] => string(3) "Lab"
}
[1] => array(2) {
["boundingBox"] => string(13) "299,956,42,10"
["text"] => string(8) "Dheddig/"
}
}
}
[11] => array(2) {
["boundingBox"] => string(13) "289,972,66,13"
["words"] => array(1) {
[0] => array(2) {
["boundingBox"] => string(13) "289,972,66,13"
["text"] => string(6) "FEMALE"
}
}
}
[12] => array(2) {
["boundingBox"] => string(14) "343,993,130,10"
["words"] => array(2) {
[0] => array(2) {
["boundingBox"] => string(12) "343,994,37,9"
["text"] => string(12) "Bixiy.•y,'"
}
[1] => array(2) {
["boundingBox"] => string(13) "437,993,36,10"
["text"] => string(7) "/Dateot"
}
}
}
[13] => array(2) {
["boundingBox"] => string(14) "290,1009,93,16"
["words"] => array(3) {
[0] => array(2) {
["boundingBox"] => string(14) "290,1009,17,13"
["text"] => string(2) "12"
}
[1] => array(2) {
["boundingBox"] => string(14) "312,1009,29,16"
["text"] => string(3) "Aug"
}
[2] => array(2) {
["boundingBox"] => string(14) "346,1009,37,13"
["text"] => string(4) "2018"
}
}
}
[14] => array(2) {
["boundingBox"] => string(14) "291,1046,92,17"
["words"] => array(3) {
[0] => array(2) {
["boundingBox"] => string(14) "291,1046,15,13"
["text"] => string(2) "11"
}
[1] => array(2) {
["boundingBox"] => string(14) "312,1047,30,16"
["text"] => string(3) "Aug"
}
[2] => array(2) {
["boundingBox"] => string(14) "347,1046,36,14"
["text"] => string(4) "2023"
}
}
}
}
}
[2] => array(2) {
["boundingBox"] => string(15) "529,726,230,296"
["lines"] => array(9) {
[0] => array(2) {
["boundingBox"] => string(14) "610,726,149,13"
["words"] => array(2) {
[0] => array(2) {
["boundingBox"] => string(13) "610,727,62,12"
["text"] => string(6) "SOMALI"
}
[1] => array(2) {
["boundingBox"] => string(13) "679,726,80,13"
["text"] => string(8) "REPUBLIC"
}
}
}
[1] => array(2) {
["boundingBox"] => string(13) "595,783,85,14"
["words"] => array(1) {
[0] => array(2) {
["boundingBox"] => string(13) "595,783,85,14"
["text"] => string(9) "Pxxxx2"
}
}
}
[2] => array(2) {
["boundingBox"] => string(14) "529,843,126,11"
["words"] => array(2) {
[0] => array(2) {
["boundingBox"] => string(13) "529,843,24,10"
["text"] => string(5) "Nit)."
}
[1] => array(2) {
["boundingBox"] => string(13) "557,843,98,11"
["text"] => string(14) "2xxxx8"
}
}
}
[3] => array(2) {
["boundingBox"] => string(13) "531,896,78,15"
["words"] => array(1) {
[0] => array(2) {
["boundingBox"] => string(13) "531,896,78,15"
["text"] => string(7) "STUDENT"
}
}
}
[4] => array(2) {
["boundingBox"] => string(14) "532,934,101,13"
["words"] => array(1) {
[0] => array(2) {
["boundingBox"] => string(14) "532,934,101,13"
["text"] => string(9) "MOGADISHU"
}
}
}
[5] => array(2) {
["boundingBox"] => string(12) "555,956,57,9"
["words"] => array(1) {
[0] => array(2) {
["boundingBox"] => string(12) "555,956,57,9"
["text"] => string(11) "Dholeshada/"
}
}
}
[6] => array(2) {
["boundingBox"] => string(14) "532,971,104,14"
["words"] => array(1) {
[0] => array(2) {
["boundingBox"] => string(14) "532,971,104,14"
["text"] => string(9) "BELEDWEYN"
}
}
}
[7] => array(2) {
["boundingBox"] => string(13) "667,992,82,11"
["words"] => array(3) {
[0] => array(2) {
["boundingBox"] => string(12) "667,993,5,10"
["text"] => string(1) "/"
}
[1] => array(2) {
["boundingBox"] => string(13) "673,992,31,11"
["text"] => string(7) "Issuing"
}
[2] => array(2) {
["boundingBox"] => string(13) "707,992,42,11"
["text"] => string(9) "Authority"
}
}
}
[8] => array(2) {
["boundingBox"] => string(15) "533,1008,186,14"
["words"] => array(1) {
[0] => array(2) {
["boundingBox"] => string(15) "533,1008,186,14"
["text"] => string(16) "SOMALTGOVERNMENT"
}
}
}
}
}
[3] => array(2) {
["boundingBox"] => string(14) "85,1147,667,18"
["lines"] => array(1) {
[0] => array(2) {
["boundingBox"] => string(14) "85,1147,667,18"
["words"] => array(4) {
[0] => array(2) {
["boundingBox"] => string(14) "85,1147,301,18"
["text"] => string(20) "P00xxx629SOM960xx84"
}
[1] => array(2) {
["boundingBox"] => string(14) "392,1147,83,18"
["text"] => string(6) "F23081"
}
[2] => array(2) {
["boundingBox"] => string(15) "483,1147,159,18"
["text"] => string(11) "13296050871"
}
[3] => array(2) {
["boundingBox"] => string(15) "650,1147,102,18"
["text"] => string(7) "5653838"
}
}
}
}
}
}
}
[1] => string(0) ""
}
Posted by kiatng to RPA - ML (2019-11-28 07:30)
